OREN OR-TC500 Ethernet Cable Tester / Certifier

$ 1,995.95

Designed for Ethernet systems, TC500 measures the speed and performance on CAT3, CAT5e, and CAT6 cables according to ANSI/ TIA/EIA-568-B and ISO/IEC 11801 to ensure the cable qualification.



  • Please allow 2 to 4 weeks for delivery
SKU: OREN-60538775078 Categories: ,

Description

Overview



Key Features

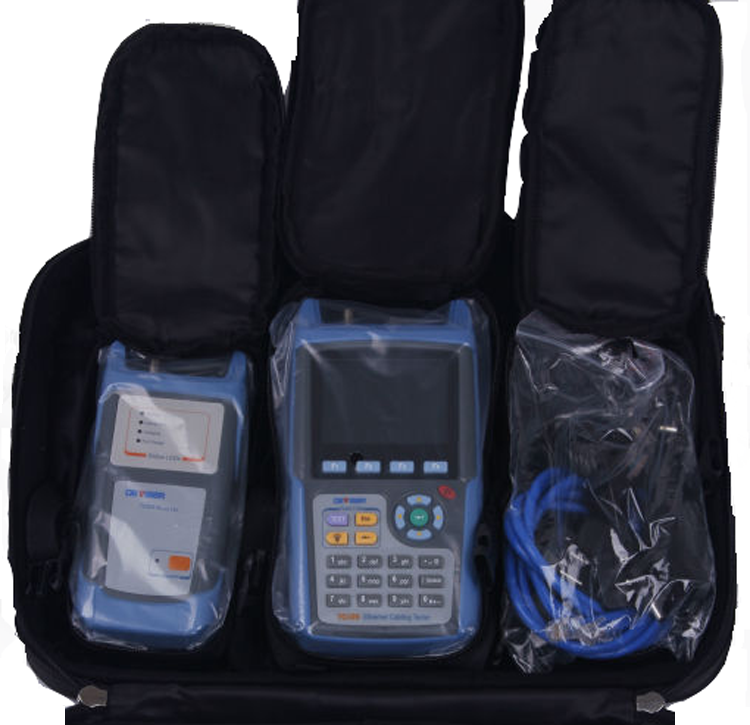

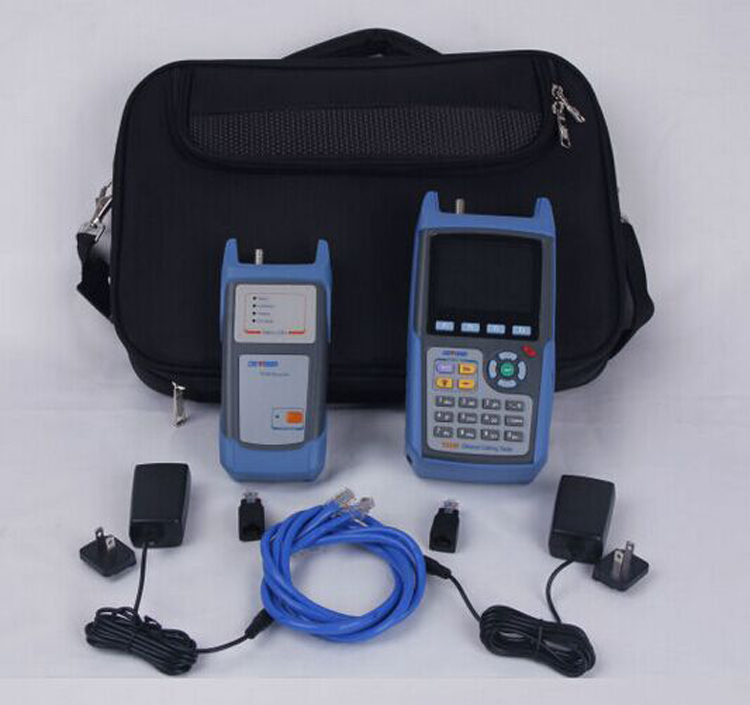

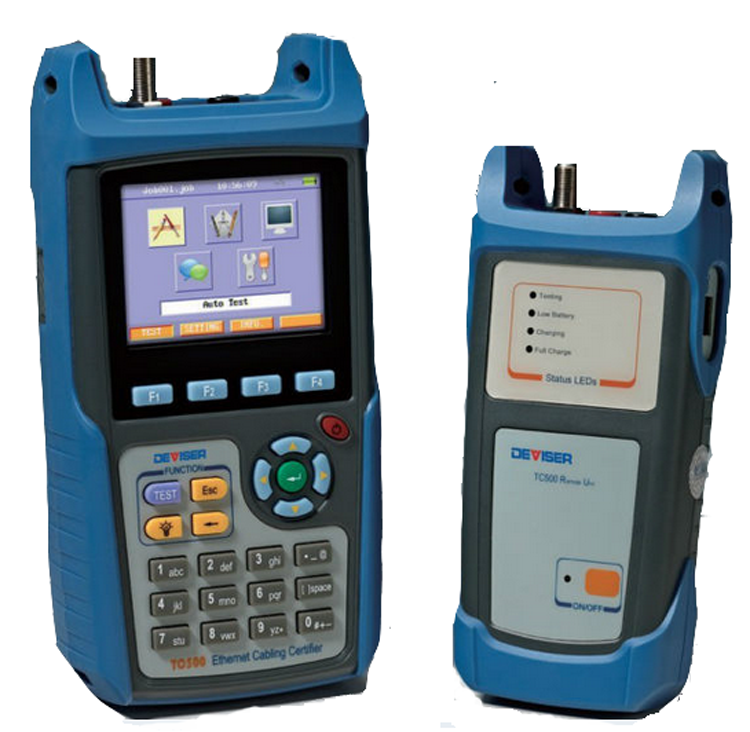

  •  Contains the main unit and a remote unit.

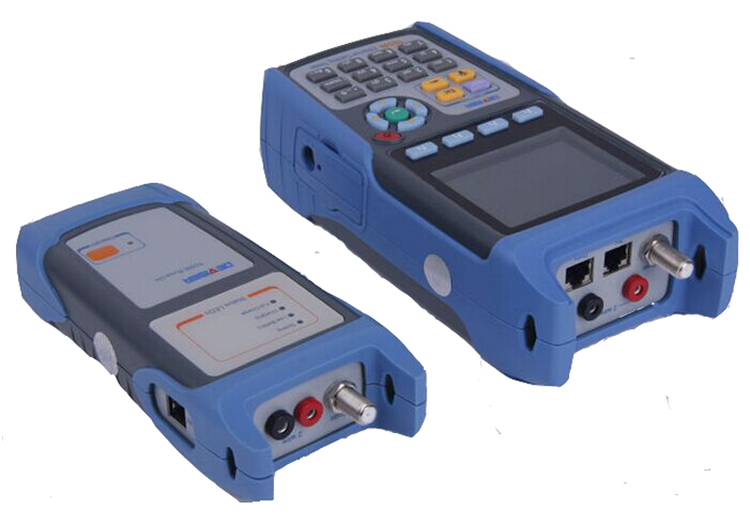

  •  Multi-connector: one RJ45 connector for UTP/STP data cable testing, one F connector for coax testing, one RJ11 connector for telephone cable testing and two banana jacks for 2-wires testing
  •  Support International standard ISO/IEC 11801 and American standard TIA/EIA-568-B
  • Tone generator.
  •  Two additional functions: Ping and BER Test
  • Store at least 100 results
  • Toolbox software to analyze the results on PC

Auto Test Items

  • Wire map
  • Length
  • Propagation delay
  • Delay Skew
  • D. C. loop resistance
  • Insertion loss (attenuation)
  • NEXT (near-end crosstalk)
  • PS-NEXT (power-sum NEXT)

Manual Test Items

  • Single Auto test item
  • BER Test, up to 1000BASE-T
  • TONE



 Network Test

  • Ping
  • Return loss
  • ACR (attenuation to crosstalk ratio at the near end)
  • PS ACR (power-sum ACR-N)
  • ELFEXT (equal level far-end crosstalk)
  • PS EL FEXT (power-sum ELFEXT)

Technical Index

EMS

Range Resolution Accuracy


Length

0 m ~ 176 m (UTP)

0 m ~ 200 m (Coax)



0.1 m



±1.5 m

Propagation Delay 0 ns ~ 850 ns 1 ns ±7 ns
Delay Skew 0 ns ~ 100 ns

1 ns

 ±15 ns
DC Resistance 0 Ω ~ 100 Ω 1 Ω ±2 Ω




RF Frequency



1 MHz ~ 250 MHz

NEXT, Return Loss, ELFEXT:

1 to 31.25 MHz: 150 kHz

31.25 MHz ~ 100 MHz: 250 kHz

100 MHz ~ 250 MHz: 500 kHz

Insertion Loss: 1 to 250 MHz: 1 MHz



RF Items

NEXT: 0 ~ 70 dB Insertion Loss: 0 ~ 40 dB

0.1 dB



±2 dB (Insertion Loss)



Other
Testing interface RJ45; RJ11; F; Banana Jacks
Other interface USB


Power Supply

Main unit: 7.4 V / 2.4 AH Lithium battery   Remote unit: 7.4 V / 1.1 AH Lithium battery
Working Time 3.5 hours
Charging Time 5 hours


Dimension

Main unit: 222 mm x 108 mm x 57 mm; Remote unit: 184 mm x 83 mm x 44 mm
Weight Main unit: 0.8 kg; Remote unit: 0.4 kg
