Description

Features

1. New – 8-inch retina touchscreen, 2048*1536 resolution

2. New- H.264 & H .265 ,4K video display via mainstream

3. New- 8MP TVI test,3840 x 2160P 15 FPS, 4xzoom, video record and playback, coaxial PTZ control and call camera OSD menu*

4. 5MP AHD test, 2592 x 1944P 12.5/20FPS, 4xzoom, video record and playback, coaxial PTZ control and call camera OSD menu*

5. 8MP CVI test,3840 x 2160P 12.5/15 FPS, 4xzoom, video record and playback, coaxial PTZ control and call camera OSD menu*

6. HD SDI/EX-SDI camera test, support 1080P 25/30/50/60 FPS*

7. IP & CVBS camera test ,PTZ controller

8. New- Rapid video, just by one key to detecting all network cameras and auto display

9. TesterPlay (screen projection): tester, mobile phone and PC display at the same time (For android version mobile phone)

10. Rapid ONVIF, auto login and display image from the camera, activate Hikvision camera, and also can create a testing report.

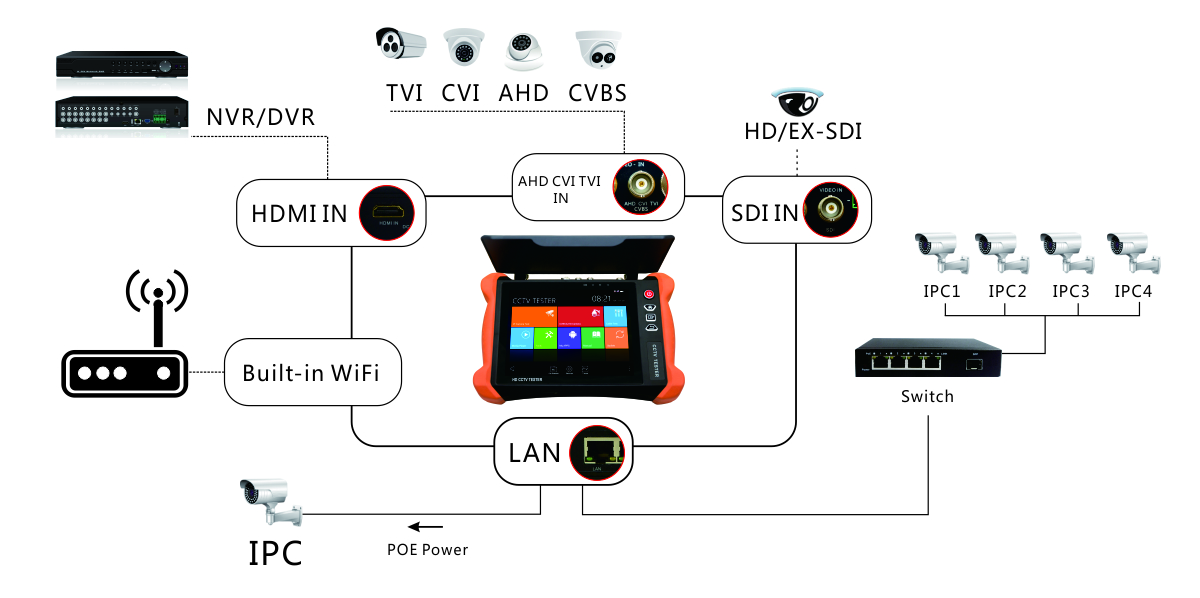

11. New- IP and analog testing at the same time, converter test from analog to digital with dual test window IP & CVBS

12. New- HDMI In mode, It can converter test from analog to digital with dual test window IP & HDMI in or Analog & HDMI in

13. New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

14. Cable tracer, search BNC cable, network cable and telephone cable from the mess cables

15. Improvement cable tester, UTP cable, telephone cable etc order, and connectivity test, can save testing report, if special number, need to customize.

16. New- Shortcut button, drop-down menu, can select PoE power, IP setting, WLAN switch, HDMI IN functions etc in any interface

17. New- Screen lock, password lock, and pattern lock are optional

18. New- HDMI out, support 4K

19. NEW- Anti-sunlight board, help shade the eyes of engineers from the glare of sunlight.

20. New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot

21. New- CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

22. New- Traffic monitoring of the tester “LAN port”, display network port or WIFI connection real-time upload and download speeds and other network parameters

23. New- Customers self-update software, you can install apps with Android versions, such as Skype, WeChat etc

24. ONVIF camera test, support 4K, Network PTZ controller (ONVIF)

25. Built-in Wi-Fi, display image from the wireless camera, create WIFI hotspot

26. New- 4K video files and MKV/MP4 media files play

27. PoE DC48V power output, Max power 24W,12V /3A power output/5V 2A power output, as a power bank

28. New- Quick office, quick office app ( support excel, word, ppt format ) doc. editable

29. 8GB SD card including

30. IP discovery, it can auto-scan the whole network segment IP and auto-modify tester’s IP address

31. Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

32. Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement

33. Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

34. POE voltage measurement, PING test, IP address scan, port flashing etc

35. Audio in / out, support record and save the audio/LED lamp, calculators, music players and other application tools

36. 7.4 V /7000mAh Lithium Ion Polymer Battery, after 6-7 hours charging, working time lasts 16 hours.
